straighten a frame

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

straighten a frame

Old 01-23-21, 02:07 PM
  #1
BlueDevil63
my name is Jim
Thread Starter

BlueDevil63's Avatar

Join Date: Aug 2010
Location: Eagle, CO
Posts: 1,422

Bikes: too many or not enough

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 161 Post(s)
Liked 188 Times in 56 Posts
straighten a frame

So this is the first time I have come across a frame that was out of alignment like this.



The whole rear triangle is pushed about 6-7mm over towards the non-drive side. Dropouts are aligned, and spacing (120mm) is correct between the dropouts. No signs of any bends or deformation in the tubes. This is pretty evident with the rear wheel installed.

Ok so how do I fix this? Clearly I need to bend the rear triangle back towards the drive side and I can imagine a bunch of ways to do that but would value input. I've looked at the stuff on the Park website but any other pointers?

Oh this is a Motobecane Le Champion frame made of Reynolds 531 from about 1974.
__________________
Flickr Albums
ebay: cicloclassico
64 Bianchi Specialissima, 67 Masi Special, 70 Pogliaghi ItalCorse, 72 De Rosa, 72 Masi Gran Criterium, 75 Masi Gran Criterium, 77 Melton, 79 Bianchi Super Leggera, 79 Gios Super Record, 81 Picchio Special, 82 Guerciotti Super Record, 82 Colnago Profil CX, 83 Colnago Superissimo, 84 Fuso



BlueDevil63 is offline
Likes For BlueDevil63:
Old 01-23-21, 02:28 PM
  #2
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 10,281
Mentioned: 292 Post(s)
Tagged: 1 Thread(s)
Quoted: 2369 Post(s)
Liked 616 Times in 503 Posts
-----

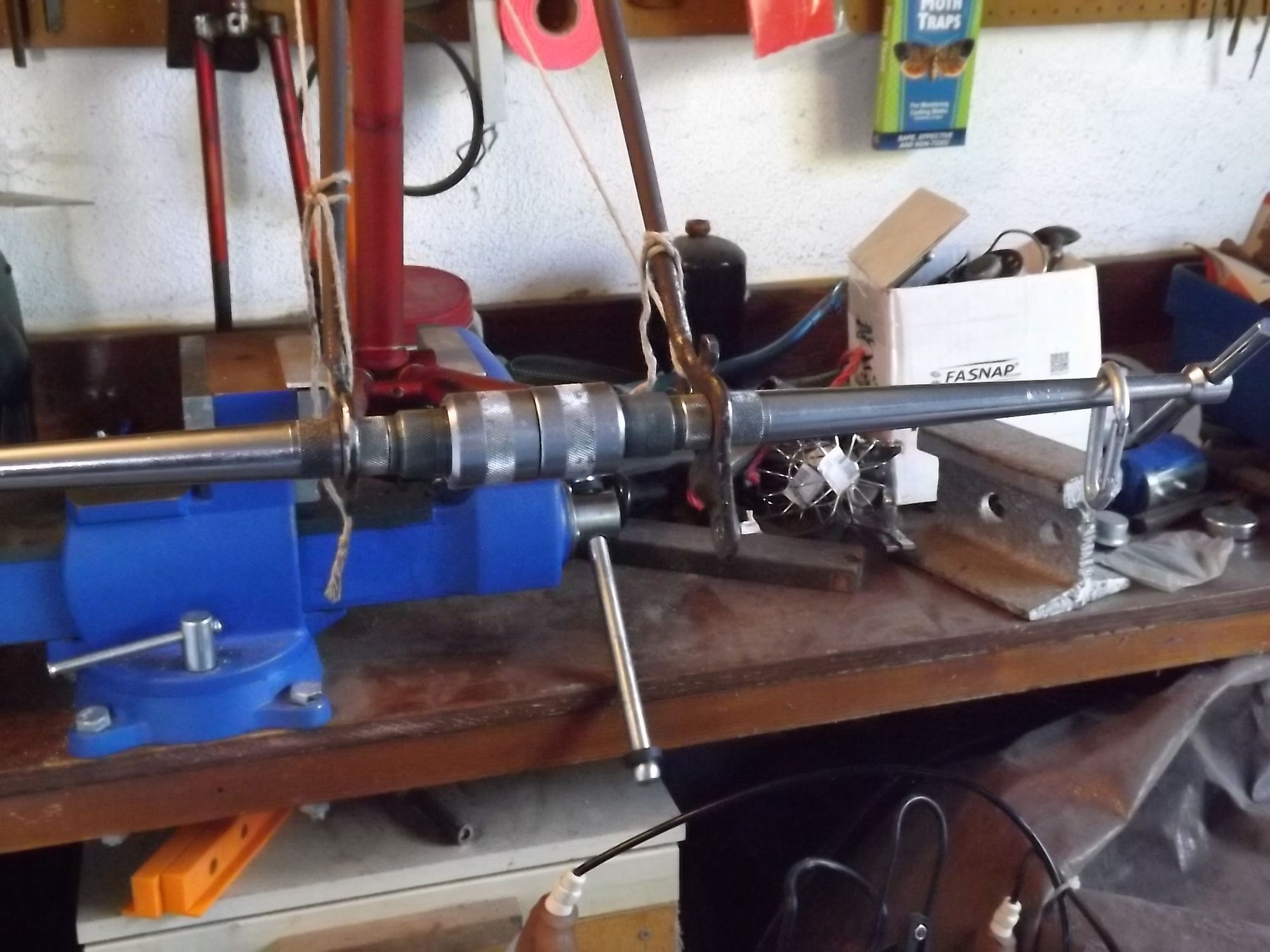

1 remove the bottom bracket asssembly including fixed cup

2 clamp shell in beefy bench vise

3 with shell tightly clamped you have both hands free to do the cold setting

4 use the palm of one hand to push the dropout in the desired direction
the steel has a measure of springiness and will come back toward where it was when released so one needs to take things slightly past where one wants them to end up

5 when you are satisfied you have it correct from the evidence of the string test remove the frame from the vise and place in repair stand, use the shell faces to make a verification check with the aid of a straightedge

the string and strightedge tests should agree. if they do not then a problem resides elsewhere, such as the seat tube and/or down tube not being perpendicular to the shell for example.

-----

Last edited by juvela; 01-23-21 at 04:40 PM. Reason: addition for clarity
juvela is offline
Likes For juvela:
Old 01-23-21, 02:29 PM
  #3
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 17,861

Bikes: A bunch of old bikes and a few new ones

Mentioned: 153 Post(s)
Tagged: 0 Thread(s)
Quoted: 4865 Post(s)
Liked 1,324 Times in 883 Posts
Signing on as I have a frame out of alignment like this as well with the rear triangle pushed to one side but the spacing is correct and drop outs aligned. With my bike the rear triangle has been respaced from 120 to 126 OLD and my guess is that whoever respaced the rear triangle just did a shoddy job of it.
bikemig is online now
Old 01-23-21, 02:38 PM
  #4
repechage
Senior Member

Join Date: Jun 2006
Posts: 15,297
Mentioned: 102 Post(s)
Tagged: 0 Thread(s)
Quoted: 1663 Post(s)
Liked 573 Times in 449 Posts
I would verify that the head and seat tube are in plane. And the front end of the bike is not off as don't move things where you do not need to.
A crude way would be to remove the bottom bracket and using the faces of that depending on tools available measure back, clamping the shell in a bench vise with a pair of 1-2-3 blocks on either side and a framing square or two set against them will get you in verify mode.
I would set a framing square edge against the seat stays and explore if they have a tale to tell.

I am assuming this is a bike without its full history known to you.

The 100 pt solution is a surface plate table and a "whipping" post.

Last edited by repechage; 01-23-21 at 02:48 PM.
repechage is offline
Likes For repechage:
Old 01-23-21, 02:38 PM
  #5
Bikejock200M
Member

Join Date: Feb 2018
Posts: 45
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 6 Times in 4 Posts
Frame alignment

My 76 Motobecane Champion Team was also bent out of alignment like yours, not quite as far though. I clamped the bottom bracket in a vise between two pieces of 1 x 4 pine to protect it. Then I just slowly pushed and pulled the frame back into alignment. At first I tried the method that uses 2 x 4 placed on the inside of the dropout and braced against downtube. This didn't sems safe in practice because it takes Lot of force to move the stats and I was worried about damaging the seat tube. I ended up just grabbing the dropout and forcing it with my bare hands. I had much better control. Do a good shove, check progress, adjust force accordingly. I did use a Park frame alignment tooll as went. When I wa a finished pushing and pulling the stays, I finished with dropout alignment using the Park tools
Bikejock200M is offline
Old 01-23-21, 02:38 PM
  #6
gugie
Dilberteur at large

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 8,927

Bikes: It's complicated.

Mentioned: 980 Post(s)
Tagged: 0 Thread(s)
Quoted: 3108 Post(s)
Liked 1,248 Times in 653 Posts
Sheldon Brown has a method (doesn't he always)? You can get it reasonably straight and rideable that way.

Better yet is to clamp the bare frame in a beefy vise and do the work like that with the string method.

Better yet is to use a Park Frame Alignment Gauge, which will be more accurate than a string. I was able to salvage a fairly bent Zeus frame like this.

Best is to take it to a framebuilder with an alignment table if you want to get it dead on.

Your Le Champion is a 531 frame, which are pretty tough and can usually be bent back into shape with no discernable strength loss. Seeing your list of bikes, I'm guessing you'll want to take the time and perhaps $$ to get it as straight as possible?
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Likes For gugie:
Old 01-23-21, 02:40 PM
  #7
xiaoman1
Awaiting Parole

xiaoman1's Avatar

Join Date: Mar 2014
Location: Weird Coast City of the Angels
Posts: 3,745

Bikes: A few too many

Mentioned: 33 Post(s)
Tagged: 1 Thread(s)
Quoted: 838 Post(s)
Liked 656 Times in 457 Posts
BlueDevil68,
By whole rear triangle, I suppose you mean both sides...if so, I would secure a block between the drops and nudge both at the same time.
Best, Ben
__________________
"STAND UP FOR WHAT IS RIGHT EVEN IF YOU ARE THE ONLY ONE STANDING"

xiaoman1 is online now
Old 01-23-21, 02:55 PM
  #8
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 10,459

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

Mentioned: 179 Post(s)
Tagged: 0 Thread(s)
Quoted: 986 Post(s)
Likes: 0
Liked 665 Times in 419 Posts

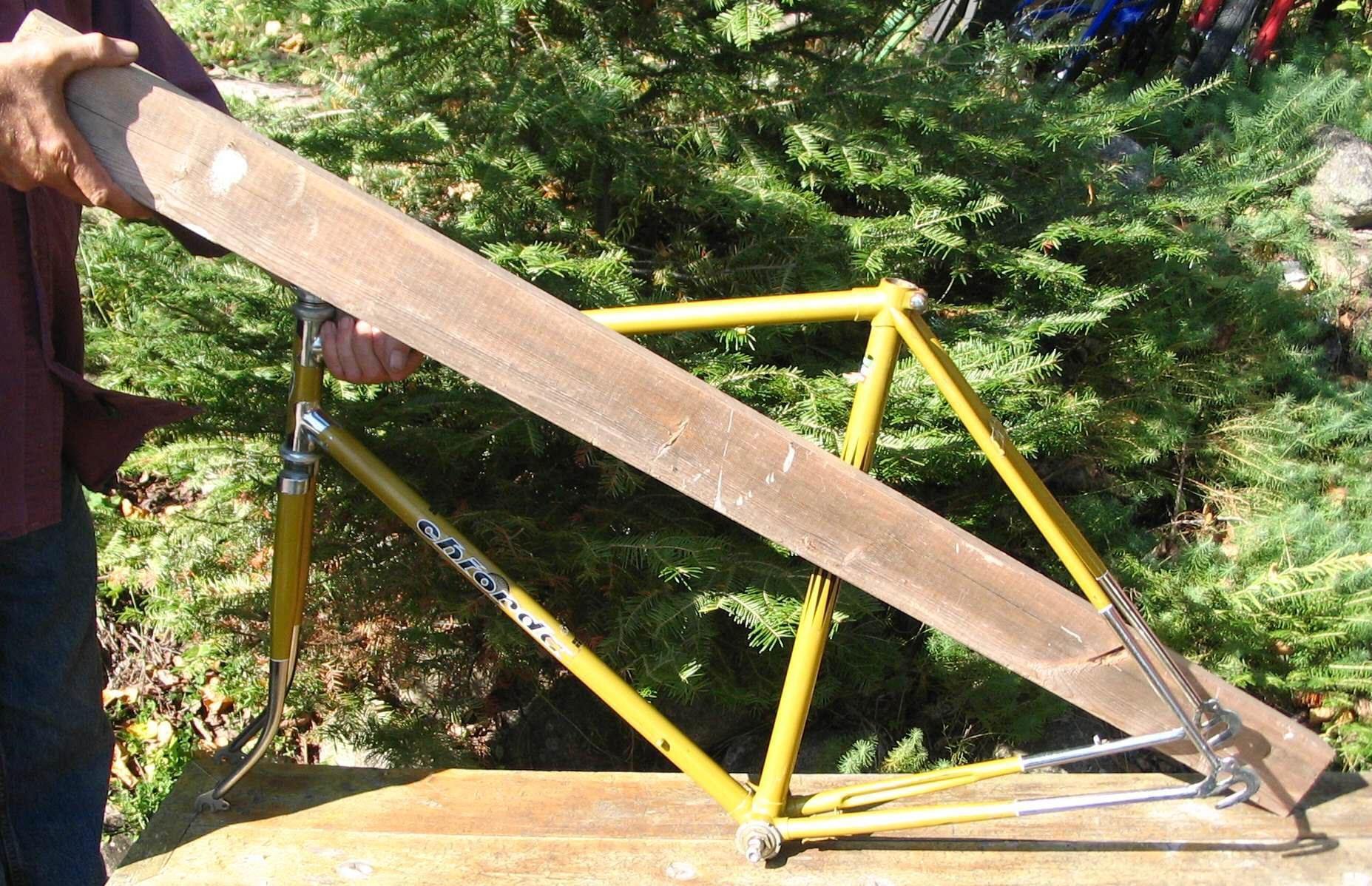

Tools needed to center stays - six foot long 2 x 4 lumber, Fishing line or really fine string. Measuring tape.

Once you have decided which way to bend the stays, do so but be careful at brazed or soldered joints. I always put something to add strength to the chain stay brace area near the bottom bracket.

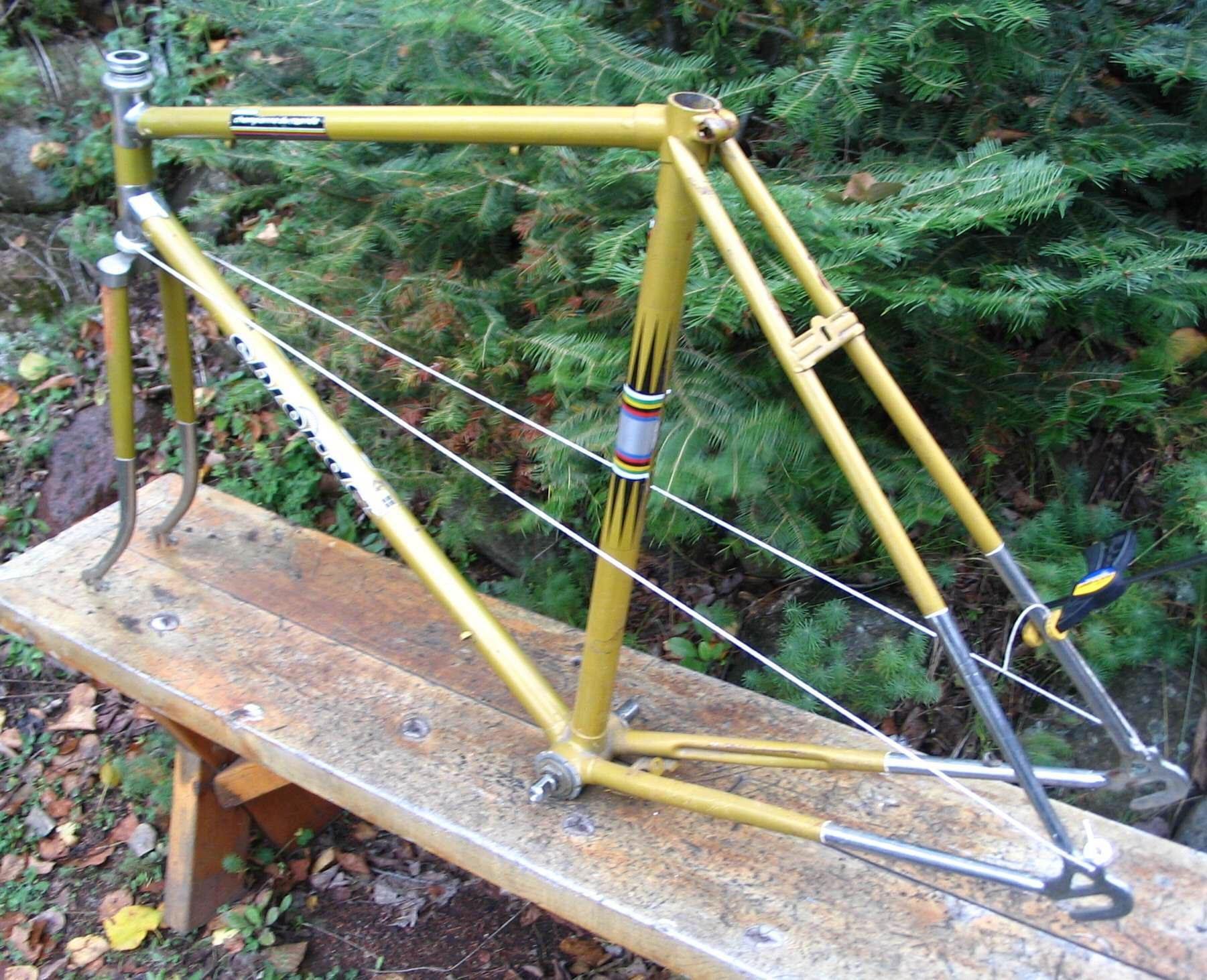

Attach the string to the non-drive side of the rear drop (use a fender eye, for example). Run the string up to and around the front of the head tube. Tie the running end of the string (temporary knot) to the drive side drop fender eyelet. Make sure the string is tight with no sag...



Measure the distance from the non-drive side of the seat tube to the string - be as accurate as you can be. Repeat for the other side and compare. Using the piece of lumber, as pictured, carefully bend one stay at a time in the direction it should go. Check with the string again. The results will tell you that you need to bend more or bend back a bit (try to avoid the bend back issue to avoid work hardening the metal). Check the drop distance and adjust as required. Repeat until the seat tube to string measurement is equal on both sides. That should get you centered.

Next, make sure that your drops are 120 mm apart and then square them up to each other. That should get you where you want to go.
__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Likes For randyjawa:
Old 01-23-21, 03:52 PM
  #9
BlueDevil63
my name is Jim
Thread Starter

BlueDevil63's Avatar

Join Date: Aug 2010
Location: Eagle, CO
Posts: 1,422

Bikes: too many or not enough

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 161 Post(s)
Liked 188 Times in 56 Posts
Thanks!!!

Yes both sides are moved over. Spacing is correct and dropouts are aligned so I suspect it happened with a rear wheel in the dropouts (or was built that way?).

No I have no idea of history. This will likely be a flip but my goal is to always sell things on in as perfect condition as I can make them so I do want it to be in good if not perfect alignment. My usual process involves aligning dropouts and rd hanger. This was the first frame I have found that was out of alignment like this enough that I thought it needed to be corrected.

I will check other frame geometry as well as I can before proceeding.
__________________
Flickr Albums
ebay: cicloclassico
64 Bianchi Specialissima, 67 Masi Special, 70 Pogliaghi ItalCorse, 72 De Rosa, 72 Masi Gran Criterium, 75 Masi Gran Criterium, 77 Melton, 79 Bianchi Super Leggera, 79 Gios Super Record, 81 Picchio Special, 82 Guerciotti Super Record, 82 Colnago Profil CX, 83 Colnago Superissimo, 84 Fuso



BlueDevil63 is offline
Old 01-23-21, 05:56 PM
  #10
jiangshi
OFG in Exile

Join Date: Jul 2013
Posts: 1,737
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 418 Post(s)
Liked 133 Times in 91 Posts
Just a thought, and maybe someone has mentioned it already, but consider using threaded rod with bolts and washers on both sides of the dropouts while the correcting alignment. That will keep the dropouts fairly aligned and the spacing correct. Keep an eye on the seat stay at the brake bridge and seat tube. Unfortunately, if you see something bad it's probably too late

When I flipped bikes,I too, tried to align things properly before they went out the door. The Park tool that we can't call by name really helps. So much easier and more accurate than string. It pays for itself in time by the second use.

Good luck.
jiangshi is offline
Old 01-23-21, 06:11 PM
  #11
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 9,272

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 102 Post(s)
Tagged: 0 Thread(s)
Quoted: 2714 Post(s)
Likes: 0
Liked 1,177 Times in 806 Posts
Originally Posted by BlueDevil63 View Post
Thanks!!!

Yes both sides are moved over. Spacing is correct and dropouts are aligned so I suspect it happened with a rear wheel in the dropouts (or was built that way?).

No I have no idea of history. This will likely be a flip but my goal is to always sell things on in as perfect condition as I can make them so I do want it to be in good if not perfect alignment. My usual process involves aligning dropouts and rd hanger. This was the first frame I have found that was out of alignment like this enough that I thought it needed to be corrected.

I will check other frame geometry as well as I can before proceeding.
The history - I"m quite sure the bike (or its rider) has been hit from the side by a car. I picked up a frame where it was obvious something like an SUV had hit it. (Trashed fork.) Got it home and realized the triangle was pushed a couple of cm to the side. (Dropout spacing and alignment is preserved because they were locked together by the hub locknuts and QR.)
79pmooney is online now
Old 01-23-21, 06:12 PM
  #12
bikingshearer
Crawlin' up, flyin' down

bikingshearer's Avatar

Join Date: Jan 2006
Location: Democratic Peoples' Republic of Berkeley
Posts: 4,035

Bikes: 1967 Paramount, 1982-ish Ron Cooper,1978 Eisentraut "A," mid-1960s Cinelli Speciale Corsa, 1961 Bianchi Competizione (an Eroica bike), 1994 Trek 520, 199? Burley Bossa Nova, early-1970s Cinelli Speciale Corsa (also an Eroica bike)

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 283 Post(s)
Liked 231 Times in 121 Posts
Originally Posted by gugie View Post
Sheldon Brown has a method (doesn't he always)? You can get it reasonably straight and rideable that way.

Better yet is to clamp the bare frame in a beefy vise and do the work like that with the string method.

Better yet is to use a
Park Frame Alignment Gauge, which will be more accurate than a string. I was able to salvage a fairly bent Zeus frame like this.

Best is to take it to a framebuilder with an alignment table if you want to get it dead on.

Your Le Champion is a 531 frame, which are pretty tough and can usually be bent back into shape with no discernable strength loss. Seeing your list of bikes, I'm guessing you'll want to take the time and perhaps $$ to get it as straight as possible?
Winner, winner, chicken dinner. I wouldn't try doing this unless I was experimenting on a frame that I don't really care about. If I was interested in keeping or selling it, I'd call the pros from Dover, get out of the way and let them do their thing. As Dirty Harry said in, I think, "Magnum Force": "A man's got to know his limitations."
__________________
"I'm in shape -- round is a shape." Andy Rooney
bikingshearer is offline
Old 01-23-21, 06:32 PM
  #13
gugie
Dilberteur at large

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 8,927

Bikes: It's complicated.

Mentioned: 980 Post(s)
Tagged: 0 Thread(s)
Quoted: 3108 Post(s)
Liked 1,248 Times in 653 Posts
Originally Posted by bikingshearer View Post
Winner, winner, chicken dinner. I wouldn't try doing this unless I was experimenting on a frame that I don't really care about. If I was interested in keeping or selling it, I'd call the pros from Dover, get out of the way and let them do their thing. As Dirty Harry said in, I think, "Magnum Force": "A man's got to know his limitations."
For some people, a Motobecane Le Champion might be the nicest frame they'll ever own. Looking at the OP's list, this one's bottom of the barrel, and he's looking to flip it. This one might be the time to experiment instead of paying someone.

If the OP were driving distance from me, I'd just set aside an hour on a weekend and have him come by and show him how to do it with my tools for a six pack. Met some nice C&Ver's that way, which is more valuable to me than some nominal repair charge.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 01-23-21, 07:02 PM
  #14
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 2,669

Bikes: 81 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1001 Post(s)
Liked 387 Times in 276 Posts
I wouldn't know how to find the "thread" but over on CR, there was a discussion about bending frames back to where they should be. I expected the participants -- known vintage guys with really nice bikes-- to immediately advise to seek out a surface plate and a BB post. But most offered procedures involving brute force. Some 2x4s, but other methods involving getting on the floor with legs wrapped here or there and pulling and/or pushing...

it it might have been within the last few months.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Old 01-23-21, 08:01 PM
  #15
BlueDevil63
my name is Jim
Thread Starter

BlueDevil63's Avatar

Join Date: Aug 2010
Location: Eagle, CO
Posts: 1,422

Bikes: too many or not enough

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 161 Post(s)
Liked 188 Times in 56 Posts
Hey thanks for all the help. Clamped the BB in a vice and just went to work with my hands. Got it within a mm or two with no big problems. I live in the boonies so no frame builders that close to me (well at least a couple hours drive) and I am pretty handy and had no problems trying this myself.
__________________
Flickr Albums
ebay: cicloclassico
64 Bianchi Specialissima, 67 Masi Special, 70 Pogliaghi ItalCorse, 72 De Rosa, 72 Masi Gran Criterium, 75 Masi Gran Criterium, 77 Melton, 79 Bianchi Super Leggera, 79 Gios Super Record, 81 Picchio Special, 82 Guerciotti Super Record, 82 Colnago Profil CX, 83 Colnago Superissimo, 84 Fuso



BlueDevil63 is offline
Likes For BlueDevil63:
Old 01-23-21, 09:28 PM
  #16
gugie
Dilberteur at large

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 8,927

Bikes: It's complicated.

Mentioned: 980 Post(s)
Tagged: 0 Thread(s)
Quoted: 3108 Post(s)
Liked 1,248 Times in 653 Posts
Originally Posted by BlueDevil63 View Post
Hey thanks for all the help. Clamped the BB in a vice and just went to work with my hands. Got it within a mm or two with no big problems. I live in the boonies so no frame builders that close to me (well at least a couple hours drive) and I am pretty handy and had no problems trying this myself.
Excellent! Sometimes all you need is some confidence, and a splash of audacity to do something you've never tried before.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Likes For gugie:
Old 01-23-21, 11:12 PM
  #17
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 19,321

Bikes: old ones

Mentioned: 272 Post(s)
Tagged: 0 Thread(s)
Quoted: 20215 Post(s)
Liked 3,408 Times in 2,486 Posts
Originally Posted by BlueDevil63 View Post
Hey thanks for all the help. Clamped the BB in a vice and just went to work with my hands. Got it within a mm or two with no big problems. I live in the boonies so no frame builders that close to me (well at least a couple hours drive) and I am pretty handy and had no problems trying this myself.
...great ! Remember to check (and re-align if needed) the dropouts so they are parallel.

3alarmer is offline
Likes For 3alarmer:
Old 01-25-21, 10:28 AM
  #18
repechage
Senior Member

Join Date: Jun 2006
Posts: 15,297
Mentioned: 102 Post(s)
Tagged: 0 Thread(s)
Quoted: 1663 Post(s)
Liked 573 Times in 449 Posts
Originally Posted by randyjawa View Post
Tools needed to center stays - six foot long 2 x 4 lumber, Fishing line or really fine string. Measuring tape.

Once you have decided which way to bend the stays, do so but be careful at brazed or soldered joints. I always put something to add strength to the chain stay brace area near the bottom bracket.

Attach the string to the non-drive side of the rear drop (use a fender eye, for example). Run the string up to and around the front of the head tube. Tie the running end of the string (temporary knot) to the drive side drop fender eyelet. Make sure the string is tight with no sag...



Measure the distance from the non-drive side of the seat tube to the string - be as accurate as you can be. Repeat for the other side and compare. Using the piece of lumber, as pictured, carefully bend one stay at a time in the direction it should go. Check with the string again. The results will tell you that you need to bend more or bend back a bit (try to avoid the bend back issue to avoid work hardening the metal). Check the drop distance and adjust as required. Repeat until the seat tube to string measurement is equal on both sides. That should get you centered.

Next, make sure that your drops are 120 mm apart and then square them up to each other. That should get you where you want to go.
good visual, but use tex 90 thread, (heavy upholstery thread) much thinner, can be pulled taught, and more precise.
repechage is offline
Old 01-25-21, 10:41 AM
  #19
ZudeJammer
Senior Member

ZudeJammer's Avatar

Join Date: Oct 2019
Posts: 117

Bikes: fuji touring v, motobecane grand touring 1980s, stumpjumper ‘93

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked 42 Times in 27 Posts
when people say bend carefully, do it carefully, even if you have to try to bend and measure 5 times in a row with no result that is better than overbending
ZudeJammer is offline
Old 01-25-21, 11:18 AM
  #20
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 10,459

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

Mentioned: 179 Post(s)
Tagged: 0 Thread(s)
Quoted: 986 Post(s)
Likes: 0
Liked 665 Times in 419 Posts
when people say bend carefully, do it carefully, even if you have to try to bend and measure 5 times in a row with no result that is better than overbending
That is great advice! I 100% agree. Also, do not use my methods for aluminum frame sets!

good visual, but use tex 90 thread, (heavy upholstery thread) much thinner, can be pulled taught, and more precise.
I agree and apologize for not mentioning that. In practice, I use fishing line (used what was on hand) but it does not photograph well, hence the cotton mock up.
__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Old 01-25-21, 11:58 AM
  #21
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 10,281
Mentioned: 292 Post(s)
Tagged: 1 Thread(s)
Quoted: 2369 Post(s)
Liked 616 Times in 503 Posts
-----

BlueDevil63 -

good to read that you now have things well sorted

the experience will make it an easier & faster procedure if it should come up again in your cycle work

one thing we have all forgot to mention is that the drive side set of stays can usually be moved laterally with less force than the non-drive side due to the double dimpling of the drive side chain stay


-----
juvela is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
